Performance tuning tips

AmiBroker is one of the fastest (if not the fastest) technical analysis program, still the user by applying incorrect settings, poor formula coding and other sub-optimum choices can significantly slow it down. This short chapter we will give few hints on how to make program perform as it was originally designed to.

There are three areas of performance tuning:

1. Operating system / machine level
2. AmiBroker settings level
3. Formula coding

On operating system level you should do:

• Avoid installing unnecessary 3rd party programs

  Specifically avoid all kinds of "memory turbo", "windows optimizers", "windows cleaners" and such tools as they bring just more load to the CPU and system resources and provide zero or virtually zero benefit. What is worse, they could affect normal operation of Windows and cause compatibility problems

• Turn OFF virus checking for DATA files

  Many antiviruses turn on so called "live" protection on all files on all disks. This will bring system performance to its knees. Why? Simply because anti-virus will intercept each and every file access and run its extensive checking on each data access. This could result in drastic slow down of file accesses to the extent that Windows boots 3 times slower than normal.
  See the following article http://www.thepcspy.com/read/what_really_slows_windows_down/5 that shows some real measurements on impact of anti-virus.

  While I am not saying to turn off antivirus completely, it is strongly recommended to turn OFF anti-virus checking on DATA FILES, specifically on all data files inside AmiBroker folder. Generally speaking there are two kind of files: executable (.exe, .dll, .ocx) and data files (.txt, .html, .wav, .jpg, .gif, .chm, etc...) . Checking data files for viruses makes actually very little or no sense at all because they don't contain any executable code therefore can not really be the source of infection. As long as file does not include any executable part - it is safe. Note however that some data files (such as Excel .xls, can contain macros and macros _are_ executable and can be infected). But as far as AmiBroker goes, anything inside AmiBroker directory that does not have .exe, .dll, or .js extension is non-executable and safe.


• Choose anti-virus wisely

  As pointed out above, some anti-virus products can be really resource hogs and you should check the performance tests (see link above) before deciding on what antivirus to use.


On AmiBroker settings level

• Avoid unnecesarily large "Number of bars" in File->Database Settings

  This is the most often mistake people make. For example I have seen 50000 entered into "Number of bars" entered for end-of-day database. This does not make sense because 50000 daily bars is 192 years!!! There is no data source that offers such history and entering that amount is waste of memory. You need to keep in mind that what ever you enter here forces AmiBroker to actually allocate memory for that many bars. Each data bar is 40 bytes. So if you enter 100000 bars, you will force AmiBroker to actually allocate 4MB of memory *per symbol*. It may not sound too much but AmiBroker keeps a cache of recently used data and if you have defined the cache that is 500 symbols large you will be able to hit 2GB of memory that way. So always look at what File->Database Settings dialog displays next to "Number of bars" field. It will display the number of days equivalent to entered number of bars and choosen base time interval. Make sure that you only enter resonable values and be aware that whatever you enter here has performance consequences. The consequences do not end with memory consumption alone, but also in speed. Processing more bars means more CPU time, especially considering the fact that while small amounts of data can be kept in on-chip CPU cache, large amounts can not. Now considering that on-chip cache is usually 10 (ten) times faster than regular memory you immediately realize that specifying too much bars here result in performance drop. Again: one bar is 40 bytes. For best performance, make sure that you don't exceed CPU on-chip cache size, so if your CPU has 4MB cache, for best performance it is strongly advised not to use more than 100000 bars in File->Database Settings.

• Decrease the size of in-memory cache, if you are using very large databases (>2GB in disk size)

  The "in-memory cache" size defined in Tools->Preferences, "Data" tab controls the number of symbols in the cache and maximum amount of memory consumed by the cache. While larger cache generally speeds up processing because data do not need to be read from disk and written back all the time, you may run out of memory on certain situations when your cache is too large, especially on 32-bit operating system that limits the available virtual memory per process to 2GB. To avoid running out of memory, go to Tools->Preferences, "Data" and decrease the size of in-memory cache. To set it to minimum, enter "11" (eleven) into "in-memory cache (max. symbols)".
  IMPORTANT: It is advised NOT to decrease the cache when your databases are relatively small (few hundred MB) as larger cache will speed up the access. Large cache is good thing as long as you do not run out of memory.

On Formula coding level

Poor formula coding is the foremost reason of slow down. People coming from "other" languages often do not realize the full potential of AFL array processing and code everything "old" style (i.e. with loops). Loops can be 10..50 times slower than equivalent array-based code. So for best speed you should avoid loops at all replacing them with array processing, or at least make looping code as short as possible.

Consider the following code:

SetBarsRequired( sbrAll );
GetPerformanceCounter(1);

for( i = 0; i<BarCount; i++)
{
   med[ i ] = (H[ i ] + L[ i ])/2;
}

"Loop time: "+GetPerformanceCounter(1);

med = ( H + L )/2;

"Array time: "+GetPerformanceCounter(1);

When running this code on 350000 bars the loop version it takes 100ms (0.1s) to execute loop version and only 2ms (0.002ms) to execute array version (so array code is 50 times faster than looping). The difference is not so significant with less bars, but still with even 300 bars, loop requires 0.1ms and array needs 0.01ms so it is 10 times faster.

So there are few guidelines for AFL coding:

• Use array processing instead of loops wherever possible. To learn more about array processing, please read the "Understanding the AFL" tutorial
• Inside loops use scalars only or refer to individual array elements using [] subscript operator
• Array operations and all loop invariant code should be moved outside of loops whenever possible to avoid repeated evaluation of the same function over and over

  Consider this code:

  for( i = 0; i < BarCount; i++ )
{
   x = MA( C, 10 ); // WRONG ! loop invariant code is called over and over ! It should be OUTSIDE of loop
   y[ i ] = C[ i ]/x[ i ];
}

The problem with the above code is that it repeats the same array-base moving average calculation with exactly same input over and over again (BarCount-times). The code like this is loop-invariant (does not depend on loop counter and does not have any input that is calculated depending on loop counter, so it can be calculated ONCE and as such should be moved outside (before) the loop, as shown below:

  x = MA( C, 10 ); // CORRECT ! loop invariant code located OUTSIDE of loop

for( i = 0; i < BarCount; i++ )
{
   y[ i ] = C[ i ]/x[ i ];
}


• Use the AFL Formula Editor, Tools->Code check & Profile to find out which functions are called how many times and which ones take the most time. Start your code tuning with functions that are called the most often. Check if they are loop invariants and if so, move them OUTSIDE the loop.

• If you need to store array data in one formula and read it back in another, and were using AddToComposite/Foreign before, consider using array static variables (StaticVarGet/StaticVarSet) instead because static variables work faster. Note that static variable life is limited to program run lifetime (they are not persistent as AddToComposite tickers are), unless you set Persistent parameter to True in StaticVarSet.

Performance monitoring

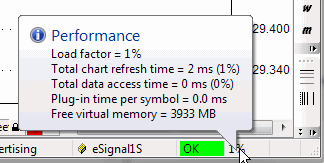

In order to help you in real-time monitoring of program performance, AmiBroker provides two tools. First is Performance monitor window, second is Performance indicator that is located on the right most side of the AmiBroker status bar.

The status bar performance indicator shows:

• for real time databases: percentage load factor indicator
• for off-line intraday and eod databases: free virtual memory

Load Factor is a percentage value that shows relative 'snappiness' of the program. The load factor is calculated as (total chart refresh time in milliseconds)/2 + (total data access time in milliseconds)/2 + (free virtual memory below 20% of total memory available). So it will reach 100% if any of situations listed below happen:

• total chart refresh time is higher than 200ms
• total data access time is higher than 200ms
• free virtual memory drops below 10% of total memory (or combination of above factors)

Total chart refresh time is a sum of times needed to redraw completely all charts displayed on screen, it includes AFL execution time for each chart pane and GDI (graphics) output on screen. (It does not include data access)

Total data access time is sum of times required to access fresh data via plugin for all displayed symbols plus time required to apply time filtering, and time compression from base interval to displayed interval.

Plug-in time per symbol is time spent in plug-in GetQuotes call per *single* symbol. If you display 10 symbol charts at once AmiBroker will call GetQuotes 10 times so this time gets multiplied by number of symbols displayed (this total plugin time *is* included in total data access time figure - listed above)
If Plug-in time per symbol exceeds 10ms it means that plugin is slow (or does not use new ADK 2.0), if this is the case you should contact plugin vendor to get updated plugin that uses ADK 2.0.

Recommended is to keep this load factor below 100%. When load factor is 100% AmiBroker is able to keep updating all charts in real-time (more frequently than 5 times per second) and maintain responsive and smooth user-interface. With load factor of 200% AMiBroker is still able to keep updating all charts as frequenty as 2.5 times per second, but user interface reaction time may be impaired a bit. Keeping load at 100% or less is recommended.
200% is maximum value that allows more or less "normal" operation.

When load factor rises above 100% the warning tooltip will pop up once informing what is the reason of poor performance When load factor rises above 300% the above tooltip will reappear every minute.

AmiBroker will continue working with loads even above 1000% however the performance will be bad (one update per 5 seconds or more).

Multithreading performance

For more information about optimum use of multithreading and other general remarks regarding performance see Efficient Use of Multithreading.
